sustainability dc 450Amps welding machine tig stick construction welder diesel generator

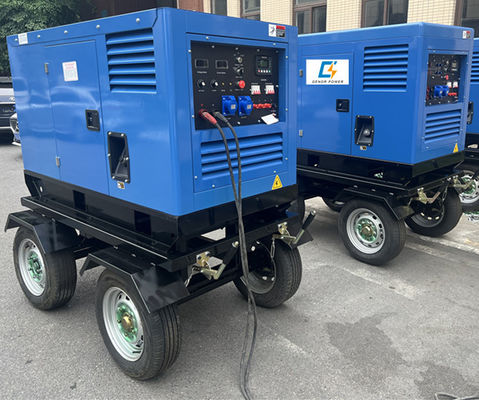

Gambar besar : sustainability dc 450Amps welding machine tig stick construction welder diesel generator

Detail produk:

Tempat asal:	CINA
Nama merek:	GENOR POWER
Sertifikasi:	ISO , CE, EPA
Nomor model:	Onrwl400

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 Set
Harga:	USD$4139 to USD$7225
Kemasan rincian:	Kasing Paket Kayu / Kayu Lapis
Waktu pengiriman:	dalam 20 hari
Syarat-syarat pembayaran:	T/T, L/C, Western Union
Menyediakan kemampuan:	200/set per bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Generator ac tukang las Diesel 400A	Jenis mesin:	Enigne Tugas Berat Industri
arus pengelasan:	400 Ampere	Kisaran arus las:	20-400A
Tegangan las:	15 - 40V	Sistem pendingin:	Air didinginkan
Siklus tugas:	60%	Proses Pengelasan:	Tongkat, Mig, Tig, Arc Mencungkil
Modus pengelasan:	Tunggal / Ganda	Aplikasi:	Konstruksi, Penambangan, Pengelasan Pipa
Menyoroti:	diesel welding machine 450Amps , construction tig stick welder , genset diesel generator with warranty

Sustainability DC 450Amps Welding Machine - Tig Stick Construction Welder Diesel Generator

The Engine Driven Welders incorporate a diesel fueled engine to produce power for Stick, TIG, MIG and Flux-Cored welding. The diesel welder can perform high-quality welding on pipelines and other welding methods. The welder has been designed to operate in virtually all locations, from very hot to cold climates. It is ideal for high-quality welding and as a dependable source of power.

The diesel welding plant adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology, enjoying excellent dynamic quality and welding performance within full voltage/current regulation range.

Welding Specifications

Welding Current Range (A)	20A - 400A
Rated welding current	400A
Operating voltage	> 36V
No-load voltage	70V - 90V

Generator Output

Excitation Type	AVR Brushless Excitation
Frequency	50Hz
Phase	Three Phase \| Single Phase
Output Voltage/Power	AC 380V/15Kw \| AC 220V/5Kw

Engine

Engine type	4 stroke, 4 cylinder, direct injection, heavy duty diesel engine
Fuel	Diesel

Technical Specifications

Rated welding current, (at Pn-60%), not more than - 400 A
Rated operating voltage, not less than - 36V
Welding current regulation limits, not less than - 60A, not more than - 400A
No-load voltage, not less than - 70V, not more than - 90V
Fuel tank capacity, not less than - 60L, not more than - 120L
Pump efficiency, not less than - 70%

Auxiliary Power Generator

Power, not more than - 4 kW
Rated voltage, (at 50 Hz), no more than - 230V

Engine Specifications

Engine type- diesel
Engine power, not less than - 30/40 kW/hp
Rotation speed, not more than - 1800 rpm
Engine cooling - liquid/air
Climatic version - N1

The trailer-chassis is designed for operation by vehicles having a traction device according to GOST 2349, electrical outlets according to GOST 9200, devices for attaching the safety chains of the trailer, as well as an additional rear and front stop to maintain in a horizontal position.

Additional Equipment

Ballast rheostat
Welding cables, an electrode holder, a welder's shield, a "Vector" type cutter length 510 mm are designed for manual cutting of steels with a thickness from 3 to 300 mm, a gas and oxygen reducer
Propane and oxygen hoses of 20 m each
Complete set of an extended set of tools for maintenance
Additional tool box
Preheating system for starting the welding unit at ambient temperature below -25°C
Shelters of the welding site from environmental influences
Power tools for machining edges of welded elements and welded joints
Light alarm
Automatic emergency protection system
Built-in auxiliary generator, - 220/380 V, to VA - 4-7, AC (for powering power tools and consumers with an active load - incandescent lamps, heaters, soldering irons)
A lamp for carrying out work at night
Tire pumping device
Electric fuel level indicator
Hour counter
Cables for remote start from an outside source
Device for drying electrodes
Anti-rollback stops, -2 pcs
Socket ONC- VN-1-7/30- P1
Spare wheel
