300kW 375kVA Cummins Diesel Genset Silent Type Generator Set 50Hz 3 Phase with Stamford Alternator

Gambar besar : 300kW 375kVA Cummins Diesel Genset Silent Type Generator Set 50Hz 3 Phase with Stamford Alternator

Detail produk:

Tempat asal:	Shenzhen, Tiongkok
Nama merek:	GENOR
Sertifikasi:	CE, ISO 8528
Nomor model:	GR-300GF

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	negotiable
Kemasan rincian:	Kotak Kayu Lapis Ekspor Standar dengan Film Pelindung
Waktu pengiriman:	15-20 hari kerja
Syarat-syarat pembayaran:	T/T, L/C
Menyediakan kemampuan:	500 set per bulan

Kontak

Detil Deskripsi produk

Merek Mesin:	Cummins	Merk Alternator:	Stamford
Pengendali:	Laut Dalam DSE6120	Frekuensi:	50Hz
Fase:	kabel 3 fasa 4	Jenis Bahan Bakar:	solar
Menyoroti:	300kW Cummins diesel genset , 375kVA silent generator set , 3 phase Stamford alternator genset

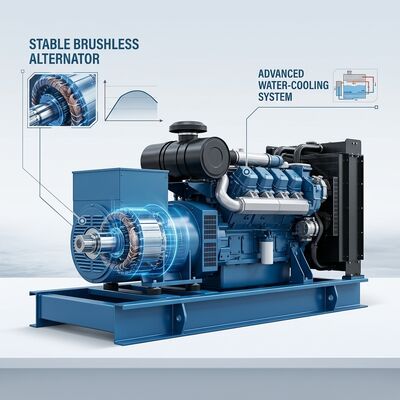

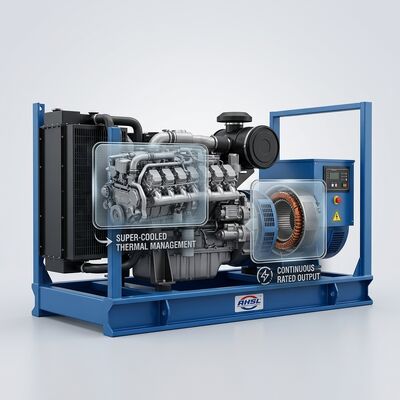

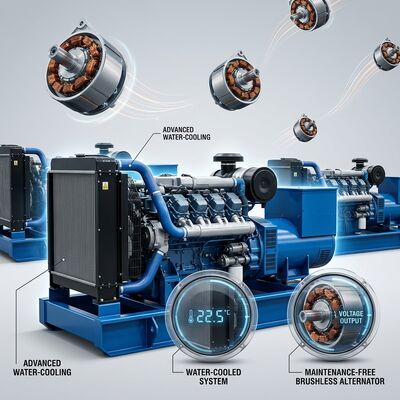

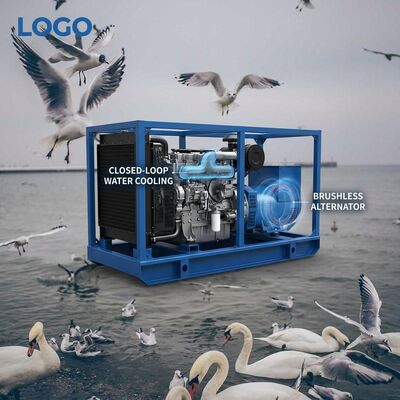

300kW 375kVA Cummins Diesel Genset Silent Type Generator Set

The GENOR GR-300GF diesel generator set is engineered for reliable prime and standby power in industrial, commercial, and utility applications. Powered by a Cummins 6LTAA8.9-G2 turbocharged diesel engine and paired with a Stamford UCI274H brushless alternator, this genset delivers 300kW (375kVA) of continuous output at 50Hz, 1500 RPM. The silent canopy enclosure ensures noise levels below 75dB(A) at 7 meters, making it suitable for noise-sensitive environments.

Key Features

Cummins Engine: 6-cylinder in-line, 4-stroke, turbocharged and aftercooled diesel engine with electronic governor for precise speed regulation
Stamford Alternator: Brushless, self-exciting, AVR-controlled 3-phase alternator with Class H insulation and IP23 protection
Silent Canopy: Heavy-gauge steel enclosure with acoustic foam lining, weatherproof and corrosion-resistant powder coating
Deepsea DSE6120 Controller: Digital auto-start/stop module with full engine monitoring, alarm protection, and remote communication capability
Heavy-Duty Base Frame: Integrated fuel tank base with anti-vibration mounts, forklift pockets, and lifting eye for easy transport
CE & ISO Certified: Manufactured to ISO 8528 and CE standards with comprehensive factory load testing before shipment

Technical Specifications

Genset Performance
Model	GR-300GF
Prime Power	300 kW / 375 kVA
Standby Power	330 kW / 412.5 kVA
Rated Voltage	400V / 230V (3 Phase 4 Wire)
Rated Frequency	50 Hz
Rated Speed	1500 RPM
Power Factor	0.8 Lagging
Voltage Regulation	≤ ±1% (Steady State)
Frequency Regulation	≤ ±0.5%
Engine Specifications
Engine Model	Cummins 6LTAA8.9-G2
Engine Type	6-Cylinder In-Line, 4-Stroke, Water-Cooled
Aspiration	Turbocharged & Aftercooled
Displacement	8.9 Liters
Bore * Stroke	114 * 145 mm
Governor Type	Electronic
Fuel Consumption @ 100% Load	≤ 205 g/kWh
Starting System	24V DC Electric Start
Cooling System	Forced Water Cooling with Radiator & Fan
Alternator Specifications
Alternator Brand/Model	Stamford UCI274H
Exciter Type	Brushless, Self-Exciting with AVR
Winding Material	100% Copper
Insulation Class	Class H
Protection Grade	IP23
Dimensions & Weight
Open Type Dimensions (LWH)	3100 * 1200 * 1850 mm
Silent Type Dimensions (LWH)	4200 * 1800 * 2300 mm
Net Weight (Silent Type)	≈ 3800 kg
Fuel Tank Capacity	550 Liters (≥ 8h @ 75% Load)

Optional Configurations

ATS (Automatic Transfer Switch) for seamless mains-to-generator switching
Remote monitoring via RS485 / GSM modem
Parallel operation kit for multi-unit synchronization
Synchronization panel for grid-tie applications
External fuel tank with extended runtime
Trailer-mounted mobile configuration
Cold weather package (coolant heater, battery charger)

Applications

Industrial Facilities: Emergency backup for factories, production lines, and processing plants
Commercial Buildings: Standby power for office towers, shopping malls, and hotels
Data Centers: Reliable prime/standby power for server rooms and IT infrastructure
Healthcare: Critical backup for hospitals, clinics, and medical equipment
Construction Sites: Mobile power for tools, lighting, and temporary facilities
Telecommunications: Site power for remote base stations and towers

Frequently Asked Questions

What is the warranty period?

12 months or 1,000 running hours from the ex-factory date, whichever comes first. Extended warranty options are available.

Do you offer OEM and customization services?

Yes, we fully support OEM branding, voltage/frequency customization, and special configurations to meet your project requirements.

What is the delivery time?

Standard units ship within 15–20 working days after deposit confirmation. Customized orders may require additional time.

What is the minimum order quantity?

MOQ is 1 set. We welcome both single-unit and bulk orders.

Can you provide on-site installation and commissioning?

Yes, our engineering team can provide on-site supervision, installation, commissioning, and training upon request.
