800Amps 600A Tig Stick DC welder Diesel engine driven construction welder 500Amps

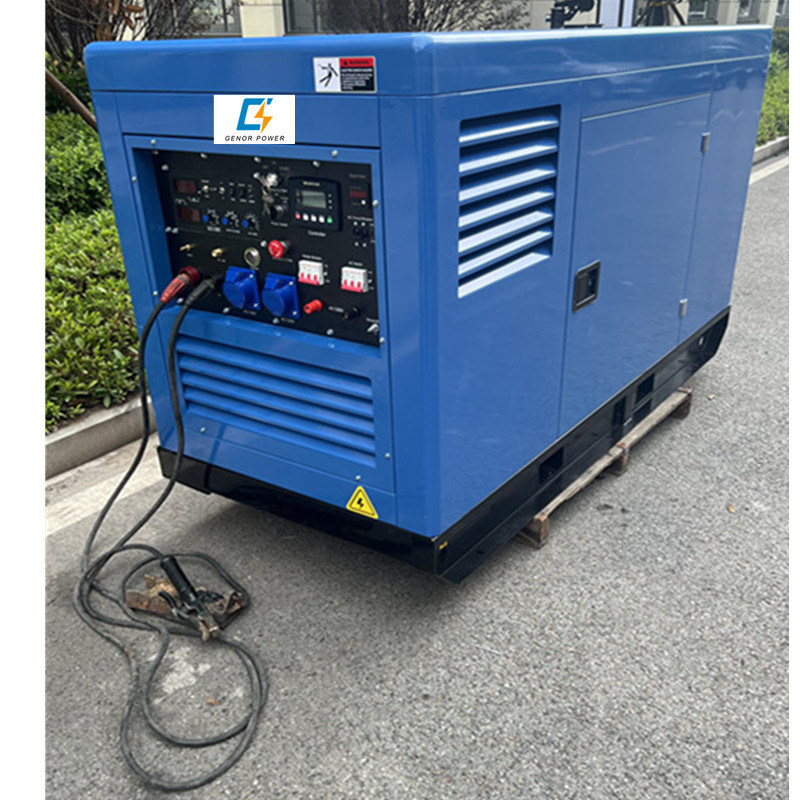

Gambar besar : 800Amps 600A Tig Stick DC welder Diesel engine driven construction welder 500Amps

Detail produk:

Tempat asal:	Tiongkok
Nama merek:	GENOR POWER
Sertifikasi:	ISO , CE, EPA
Nomor model:	ONRWL500

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	USD$4139 to USD$7225
Kemasan rincian:	Kasing Paket Kayu / Kayu Lapis
Waktu pengiriman:	dalam 20 hari
Syarat-syarat pembayaran:	T/T, L/C, Western Union
Menyediakan kemampuan:	200/set per bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Tukang las konstruksi mesin diesel	Tipe Mesin:	Enigne Tugas Berat Industri
arus pengelasan:	500 Ampere	Kisaran arus las:	20-500A
Tegangan las:	15 - 50V	Sistem pendingin:	Air didinginkan
Siklus tugas:	60%	Proses Pengelasan:	Tongkat, Mig, Tig, Arc Mencungkil
Modus pengelasan:	Ganda	Aplikasi:	Penambangan, pengelasan pipa
Menyoroti:	800Amps diesel engine welder , 600A TIG stick welder , 500Amps construction welder generator

800Amps 600A Tig Stick DC Welder Diesel Engine Driven Construction Welder 500Amps

The diesel construction welder can perform high-quality welding on pipelines and other welding methods. The Engine Driven Welders incorporate a diesel fueled engine to produce power for Stick, TIG, MIG and Flux-Cored welding. The high-frequency inverter system controls the welding current, while the analog adjustment panel ensures precise regulation of welding current and voltage.

Key Features

5-in-1 diesel engine driven welder & AC generator
Welding processes: MMA, Tig, Fcaw, gouging, Mig welding machine
Simultaneous welding and electricity use
Suitable for various occasions requiring welding such as pipeline, mining welding, emergency repairs, construction, etc.

Welding Specifications

Welding Current Range (A)	20A - 500A
Rated welding current	500A
Operating voltage	> 36V
No-load voltage	70V - 90V

Generator Output

Excitation Type	AVR Brushless Excitation
Frequency	50Hz
Phase	Three Phase \| Single Phase
Output Voltage/Power	AC 380V/15Kw \| AC 220V/5Kw

Engine Specifications

Engine type	4 stroke, 4 cylinder, direct injection, heavy duty diesel engine
Fuel	Diesel
Engine power	Not less than 30/40 kW/hp
Rotation speed	Not more than 1800 rpm
Engine cooling	Liquid/air
Climatic version	N1

Technical Specifications

Rated welding current, (at Pn-60%), not more than - 500 A
Rated operating voltage, not less than - 36V
Welding current regulation limits, not less than - 20A, not more than - 500A
No-load voltage, not less than - 70V, not more than - 90V
Fuel tank capacity, not less than - 60L, not more than - 120L
Pump efficiency, not less than - 70%

Additional Equipment

Ballast rheostat
Welding cables, electrode holder, welder's shield
"Vector" type cutter length 510 mm for manual cutting of steels (3-300 mm thickness)
Gas and oxygen reducer
Propane and oxygen hoses of 20 m each
Complete extended set of tools for maintenance
Additional tool box
Preheating system for starting at temperatures below -25°C
Shelters for welding site protection
Power tools for machining edges
Light alarm and automatic emergency protection system
Built-in auxiliary generator (220/380 V, 4-7 VA)
Work lamp for night operations
Tire pumping device
Electric fuel level indicator and hour counter
Cables for remote start from outside source
Device for drying electrodes
Anti-rollback stops (2 pcs)
Socket ONC-VN-1-7/30-P1
Spare wheel
